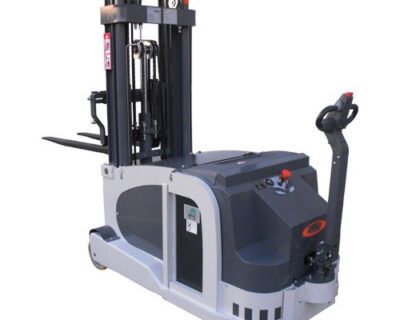

Electric Stacker 716 BD ac – 720 BD ac
Electric stacker operator accompanied
The 716 BD ac – 720 BD ac walk behind bi-directional electric stackers are specially designed for warehouses with small spaces and long and/or wide loads. Economical and versatile, these machines are the perfect solution for all those who need to transport long loads on narrow aisles without guidance.
Transport long loads on narrow aisles without guidance
Additional information
| Capacity | 1.6-2.0 t |
|---|---|
| Operator | operator accompanied |
| Lifting capacity | from 1.610 to 5.360 mm |
Frame
Made of bent sheet metal to minimise any tensions induced by welds, ensuring maximum stability and best mechanical resistance under any conditions of transport and storage. The configuration with three support points offers unique lateral stability. The highly visible masts and the central tiller ensure optimal visibility for load storage, picking and transport. The battery compartment cover is hinged, facilitating battery top-up and daily and periodical maintenance operations. Particular attention was paid to simplify the access to mechanical parts so as to minimise the routine maintenance costs.
Electronic system
The machines are fitted with AC control with power recovery during braking, when the running direction is reversed and the control throttle is released. From this control, the operator can manage all truck’s functions and carry out unlimited adjustments for performance optimisation, adapting the machine to any application, while ensuring silent operation and low power consumption at the same time. The configuration with four support points provides optimal stability, ensuring maximum safety and comfort during load picking and storage. The mini joystick (finger touch) allows the operator to control the truck by simply moving his finger along the tiller, ensuring precise and smooth load lifting and lowering, without taking his hands off the tiller. The hydraulic motor with fluid adjustment system reduces the noise, ensuring at the same time smooth and precise load lifting. Enhanced lifting and lowering speed for faster operations. Side cylinders fitted with silent blocks to prevent any kickbacks that might affect the stability of the load during forks lowering. Facilitated maintenance operations thanks to wide chassis opening that allows replacing the drive wheel without lifting the entire truck. New polyethylene casings with innovative opening system for easy access to all main components during routine and extraordinary maintenance operations. The new range of forklift trucks is fitted with traction batteries of up to 375 Ah. With the wo-wa battery charger installed on-board (optional) you can recharge your truck from any socket. The electronic control comes with IP 65 protection rating and is waterproof and dustproof. The tiller head can also be manufactured with IP55 protection rating for protection against dust and water (standard feature for cold store versions).
Drive
Powerful and reliable AC traction motors, able to satisfy even the most demanding requests for performance, providing the necessary amount of power every time, as the speed of the truck can be adjusted by changing the position of the throttle.
