Mini crane MINIDREL 60S_HG
Mold lifting machine with capacity up to 6.000 kg.
The MINIDREL 60S_HG is the mold lifting machine designed to lift and carry loads up to 6.000 kg.
Ideal for use in plastics and mold lifting and industrial maintenance applications.
The small size of the MINIDREL 60S_HG crane makes it possible to achieve a high level of performance in small spaces.
Load capacity up to 6.000 kg.
Additional information
| Features | Serie MINIDREL 60S_HG |
|---|---|
| Maximum load capacity | 6.000 Kg |
| Standard min. hook’s height from the ground | 2.400 mm |
| Standard max. hook’s height from the ground | 4.800 mm |
| Possibility to extend height up to (option) | 5.200 mm |
| Standard max. telescopic extension | 1.350 mm |
| Capacity at standard max. telescopic extension | 6.000 Kg |
| Possibility to extend telecopic extension up to (option) | 3.600 mm |
| Capacity at max.telescopic extension (point 7) | 1.900 Kg |
| Rotation (option) | – |
| Wheelbase | 2.500 mm |
| Dimensions- lenght | 2.960 mm |
| Dimensions- width | 1.430 mm |
| Dimensions- height | 2.850 / 2.950 / 3.050 /.3.150 mm |
| Adjustable speed from / to | From 0 to 60 m/min |
| Max. surmountable slope ( unloaded ) | 8% |
| Max. surmountable slope ( loaded ) | 3% |
| Front wheels | 2 x Ø300 x 140 mm |
| Rear driving wheel | 1 x Ø 450 x 180 mm |
| Wheels material | Polyurethane |
| Drive | REAR WHEEL |
| Total weight: | 7.100 Kg |
| Electric motor power | 5,0 KW / 24 cc. |
| Hardened battery (standard) | 420 Ah / 24 V |
| Battery charger on board | 110 / 240 V -50/60 Hz |
| Lead acid battery | ● |
| Gel battery | ○ |
| Additional autonomy of battery | ○ |
| Proportional control on board of all mouvements | ● |
| Certification to standard 2006/42 CE | ● |
| Made in accordance (not certified) to standard UL508 A | ● |
| Certification (issued by Third Party) to standard UL508 A | ○ |
| Drive hydraulic unit | ● |
| Automatic braking system | ● |
| Overloading safety system | ● |
| Pressure safety valves on each movements | ● |
| Safety emergency electric devices | ● |
| Winch (lifting capacity on demand) | ○ |
| Wireless remote control (capacity on demand) | ○ |
| User Manual and technical documentation | ● |
| Possibility to do all movements with max. Load | ● |
Related posts
Mini crane JT450_TR with rotation
Electric or semi-automatic mini cranes with capacity up to 450 kg. The JT450_TR (with [...]
Read more

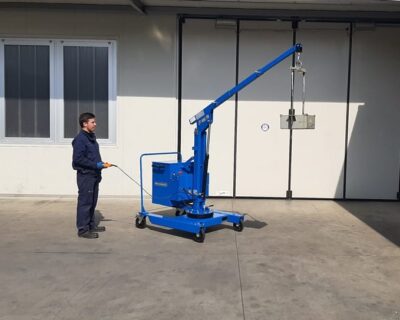

Mini crane JT400_TR with rotation
Electric or semi-automatic mini cranes with capacity up to 400 kg. The JT400_TR (with [...]
Read more

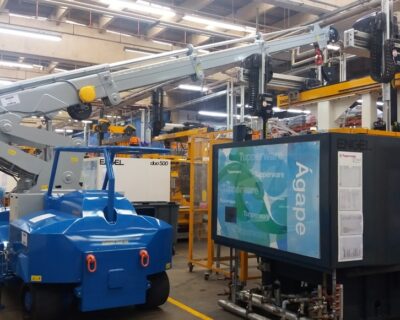

Mini crane MINIDREL 250B_TRS
Mobile cranes for lifting loads up to 25.000 kg. The MINIDREL 250B_TRS is the mobile crane [...]
Read more

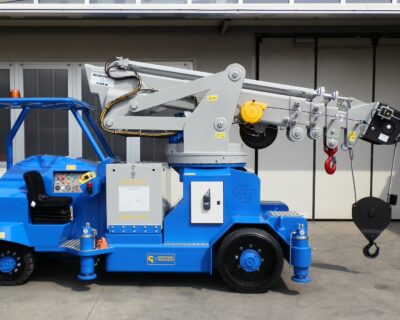

Mini crane MINIDREL 125B_TRS
